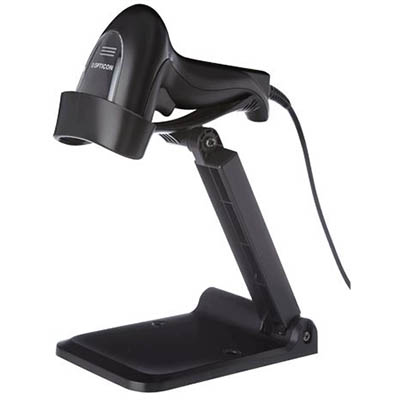

OPTICON L-50C BARCODE SCANNER USB BLACK

Code: 7072407   Brand: OPTICON   Colour: BLACK
  • The Opticon L-50 is characterized by a sophisticated ergonomic design and a unique 'custom logo display area' | The scanner comes with an adjustable stand which makes this hand scanner very functional as a desk or counter scanner USB (HID) | CCD Linear Imager | Reads High Resolution Barcodes | Reads from LCD Screens | Scan Rate of 300 scans/sec | LED Aiming line | Symbologies supported: 1D: JAN/UPC/EAN incl
  • add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey, Postal Code: Chinese Post, Korean Postal Authority code | Due to freight costs, some orders may incur a delivery charge and this will vary depending on the order, particularly in regional areas
  • Delivery costs can be confirmed at the time of order
  • Some items require assembly, if you need help this can be advised at the time of order
  • A service fee for assembly/installation may also apply
  • Delivery lead times may apply to some items, this can be confirmed at the time of order
Login for pricing
Please note: Prices are shown including GST (where applicable) and are in AUD$
Features
  • Scan Engine: CCD Linear Image Sensor | Light Source: 624 nm Red LED, CCD Linear Image | Scan Pattern: Single Line | Scan Rate: 300 Scans/sec | Resolution: PCS 0.9: 0.076 mm, Minimum PCS 0.3 | Depth of field: 40 - 600 mm (res
  • 1.0 mm / 39 mil), 25 - 350 mm (res
  • 0.5 mm / 20 mil), 15 - 220 mm (res
  • 0.25 mm / 10 mil), 30 - 120 mm (res
  • 0.15 mm / 6 mil), 35 - 90 mm (res
  • 0.127 mm / 5 mil), at PCS 0.9, Code 39 | Tilt Angle: 25 degrees | Pitch Angle: -50 to 0 degrees, 0 to +50 degrees | Skew Angle: -65 to 0 degrees, 0 to +65 degrees | Ambient Light Immunity: Fluorescent 10,000 lux max, Incandescent 10,000 lux max., Direct Sun 100,000 lux | Symbologies supported: 1D: JAN/UPC/EAN incl
  • add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1 DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey, Postal Code: Chinese Post, Korean Postal Authority code | Indicators/Controls: 1 White LED, Buzzer, 1 Scan Key | Interfaces: RS232 - DB9 PTF connector with external power supply, Keyboard Wedge -with external Power Supply, USB - Ver
  • 2.0, HID/COM, USB-A connector | Supply Voltage: 5 V +-10 % (USB), 6 V (Keyboard Wedge and RS232) | Power Consumption: Max
  • 165 mA | Drop Specification: 1.5 m drop onto concrete surface, 10 - 100 Hz with 2G for 1 hour | Environmental Sealing: IP42 | Operating Environment: 0 to 50 C, RH 5 - 95 % (non-condensing) | Storage Environment: -20 to 60 C, RH 5 - 95 % (non-condensing) | EMC/Safety Standards: CE, FCC, VCCI Class B, RoHS, IEC/EN 62471-1:2006, EN550022, EN55024 | External Dimensions: 75.4(w) x 121.2(d) x 169.5(h)mm | Weight: 145 g (excl
  • cable) | Colour: Black | OEM: 13750 | Due to freight costs, some orders may incur a delivery charge and this will vary depending on the order, particularly in regional areas
